Shubh Laxmi Machine Tools

Paper Band Filter System

Paper Band Filter System

Specifications

Type Paper Band Filters
Certification CE Certified, ISO 9001:2008
Application Filtering Coolant
Weight 100-200kg, 200-300kg, 300-400kg
Color Blue
Voltage 220V
Condition New
Automatic Grade Automatic, Fully Automatic
Driven Type Electric
Warranty 2years
Name Grinding Filter paper

Additional Information

Product Code SMT-PSS
Min. Order Quantity 01 Set(s)
Port nahava siva
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time 1 Weeks
Packaging Details Wooden Carat
Door to Door Delivery in Any Transport

Shubh laxmi machine tools ( amba engineering works ) is the very first and leading manufacturer in providing solutions for coolant filtration and Paper Band Filter System  With 40 years of development and manufacturing experience, we have developed an extensive product range that can meet customers' needs for filtration products. Magnetic Separator and Paper Filter are our fundamental products since 1975.



Our various coolant filtration systems can remove fine contaminant from 50 micron to 1 micron of particle size, therefore significantly extend the life of coolant and improve surface brightness. Our products have extensive applications for machine tools, such as Grinding Machine, Honing Machine, Lapping Machine, CNC tool and cutter grinder, Machining Center and more. These solutions not only help achieve environmentally-driven projects at your facility, but also keep valuable metal alloys separate to maximize their value in recycling.

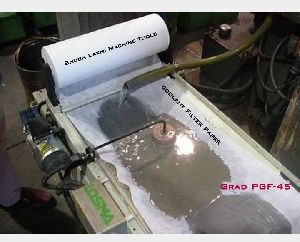

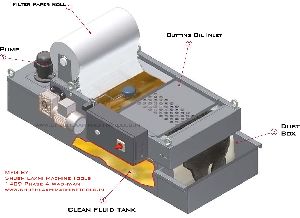

With over 40 years of experience in delivering solutions that provide significant savings and quality improvements for metalworking and recycling operations, we can always fulfill customers’ needs and provide benefits This entire unit is fixed on a coolant tank with a pump to supply coolant to the machine. The filtering paper is spread over an endless stainless steel mesh conveyor which is connected to a geared motor. this uniquely designed conveyor prevents overflowing of the liquid and the full width of the filtering paper is used. the movement of the filter paper is controlled by a float switch which actuates the geared motor.

Operation

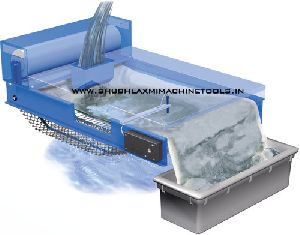

The contaminated coolant liquid (oil ) is first passed through the magnetic filter which separates almost 95% of the ferrous particles. The liquid further passes through filter which paper where all the nonferrous particles like grinding grit, stainless, brass or aluminum are filtered. As the porosity of paper gets filled up due to accumulates the liquid level rises. This triggers the float switch which starts the geared motor and fresh paper from the reel is pulled forward automatically. Now the liquid passes through the fresh paper and float switch shuts down the geared motor.

Application
Paper band cum Magnetic coolant Clarifier offer the excellent means of filtering both ferrous and nonferrous particles. Where high degree of purification id required and contaminates differ in from, size and composition. Paper band Filtering system as a rule gives best results. Paper band filters are recommended for Grinding, Honing, Transfer lines and Machining center. It also can be used for rolling mills for filtering coolant which helps to improve the surface finish to the sheets.

Advantages Of Paper Band Filter (Shubh Laxmi Machine Tools)

  • Improvement in Product Finish.
  • Improved Tool Life.
  • Improvement of Coolant / Oil Life.
  • Improvement in rate of Production.
  • Improvement in Surface Finish / Ra Value.
  • Keeps your machine clean & reduces costly machine down time.

Yes! I am interested

Submit Your Requirement


Graph

Graph

Technical Details

MODEL

CAP

CUTTING OIL

EMULSION

L

LT

W

WP

TANK CAP

PBMF

50 LPM

35 LPM

50

1100

1300

550

450

150 LTRS

PBMF

65 LPM

45 LPM

65

1200

1400

800

700

200 LTRS

PBMF

100 LPM

65 LPM

100

1600

1800

800

700

300 LTRS

PBMF

150 LPM

100 LPM

150

1600

1800

1000

900

375 LTRS

PBMF

200 LPM

130 LPM

200

2000

2200

1000

900

440 LTRS

PBMF

300 LPM

200 LPM

300

2300

2500

1000

900

575 LTRS

PBMF

400 LPM

250 LPM

400

2000

2200

1470

1370

750 LTRS
