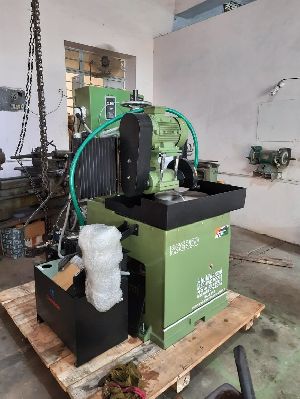

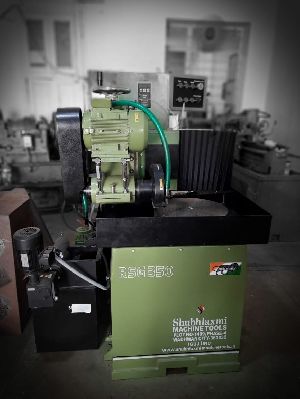

Rotary Surface Grinding Machine

Rotary Surface Grinding Machine

Specifications

Type Rotary Grinding Machine
Certification Iso 9001:2008
Weight 1-5 Ton, 500-1000kg
Color Black
Voltage 220V
Condition New
Automatic Grade Automatic
Power 1-3kw
Warranty 5 Years
Pressure 45 KG

Additional Information

Product Code RSG-350
Min. Order Quantity 01 Piece(s)
Port nahava Siva
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram, Other
Delivery Time 6 Weeks
Packaging Details Wooden Carat

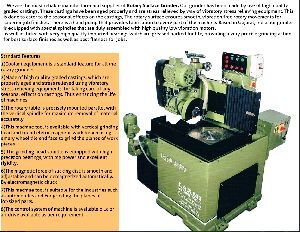

We are the most reliable manufacturer and supplier of Rotary Surface Grinding Machine. Our grinder has been made by use of high quality graded castings. These castings have been aged properly and are stress relieved by way of vibratory stress relieving equipments. This is done to cater to the seasonal effects on the castings. The rotary surface ensures smooth, vibration free rotary movements for superior job finishes. There is a hand pump that provides lubrication to every part of the machine. Based in Gujarat, India our grinder is equipped with special spindles that are duly assembled with high quality low vibration motors.
as well as fitted with very high quality imported bearings which are greased packed for life, providing a very precise grinding action for best surface finishes as well as best flatness for jobs.

  • Coolant equipment is a standard feature for all the rotary grinders
  • Made of high quality graded castings, which are properly aged and stress relieved using vibratory stress relieving equipments, for taking care of any seasonal effects on castings. Thus enhancing the life of machines.
  • The rotary table is precisely mounted parallel with the vertical spindle for maximum removal of material accurately.
  • This machine tool is available with vertical grinding head and round eletro-magnetic work bench using emery wheel tile end face to grind the planes of work pieces.
  • The grinding head spindle is equipped with high precision bearings, with big power and excellent rigidity.
  • The magnetic force of sucking disc is smooth and adjustable and can be demagnetized automatically. By electromagnetic chuck
  • This machine tool is suitable for the industries such as automobiles and For grinding the planes of lot-sized parts.
  • The control system of machine is available p.l.c or a.c drive available as per requirement



Standard Accessories and Parts :

  • 200 mm emery wheel
  • Wheel Flange
  • Control (p.l.c or a.c drive available as per requirement)
  • Coolant System
  • Leveling Screws and micro feeding
  • Coolant Nozzle
  • Operation  automatic hydraulic
  • 300 mm Electric  Magnetic Chuck and control penal
  • 2 h.p spindle electric motor
  • Hydraulic power pack
  • 50  l.p.m  coolant magnetic separator for the filtration system
  • 35 liter  coolant pump with 40 ltr coolant  tank
  • ½ hydraulic motor with power pack and oil tank capacity 40 ltr
  • For the centralizing lubricating system , lubricating hand pump
  • Below for protection of main slide
