Shubh Laxmi Machine Tools

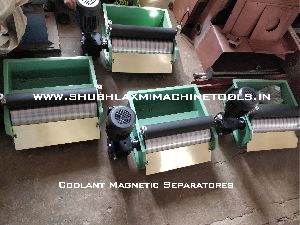

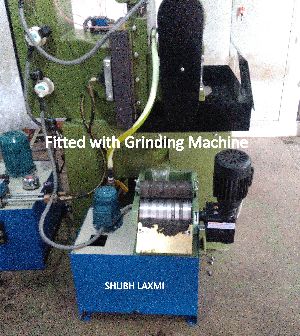

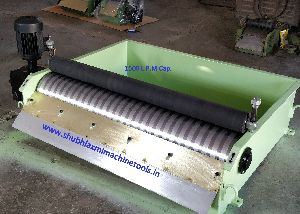

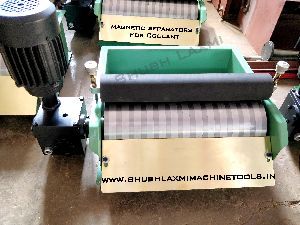

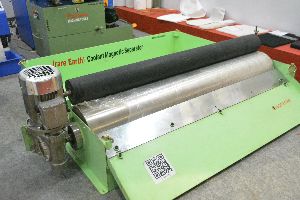

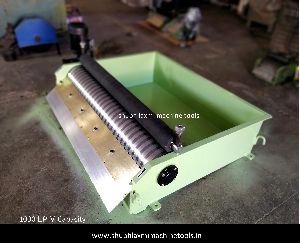

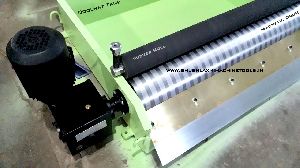

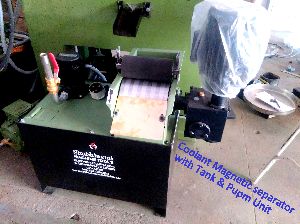

Coolant Magnetic Separator

Coolant Magnetic Separator

Specifications

Type Magnetic Separators
Certification ISO 9001:2008
Application Removing Iron Chips And Ferrous Particles
Voltage 220V
Automatic Grade Automatic
Driven Type Electric
Warranty 2 Years

Additional Information

Product Code CMS-100
Min. Order Quantity 2 Set(s)
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time 1 Weeks
Packaging Details Export Type Wooden Box

Shubh laxmi machine tools ( amba engineering works ) is the very first and leading manufacturer in providing solutions for coolant filtration and management With 40 years of development and manufacturing experience, we have developed an extensive product range that can meet customers' needs for filtration products. Magnetic Separator and Paper Filter are our fundamental products since 1975.

Our various coolant filtration systems can remove fine contaminant from 50 micron to 1 micron of particle size, therefore significantly extend the life of coolant and improve surface brightness. Our products have extensive applications for machine tools, such as Grinding Machine, Honing Machine, Lapping Machine, CNC tool and cutter grinder, Machining Center and more. These solutions not only help achieve environmentally-driven projects at your facility, but also keep valuable metal alloys separate to maximize their value in recycling.

With over 40 years of experience in delivering solutions that provide significant savings and quality improvements for metalworking and recycling operations, we can always fulfill customers’ needs and provide benefits.

We specialized in manufacturing a wide range of coolant filtration system under shubh laxmi machine tools the magnetic coolant filter consist with powerful magnetic drum housed in thick sheet metal body. the magnetic drum driven by double reduction worm geared motor. a synthetic rubber roller mounted on the spring , squeeze the dust and allows only dry power C.

Capacity - 35 LPM TO 1000 LPM

Magnetic Filter Systems have the following Features And Benefits

  • Self cleaning magnet.
  • Permanent Magnet Hi-intensity flat faced expose d polarity drum, provides most effective separation.
  • No paper products or filter elements to buy or dispose of, eliminating media costs.
  • Magnetic filter cleans coolant, providing longer life and lower costs.
  • Extends life of tooling and machinery Standard unit operates in continuous mode The magnetic filters can be installed easily in fluid flow line.
  • They give complete magnetic protection by attracting iron particles as fine as 10 microns into the magnetic trap The magnets are installed in polished condition for higher life of the rods and ease of cleaning.
  • For different flow rates, different sizes of magnetic filters are available.


Specification Applicable to Machines :

  • Surface Grinder
  • Center less Grinder
  • Internal/External Grinder
  • Honing Machine
  • Thread Grinding Machine
  • Gear Grinding Machine
  • Polisher
  • Liquid Parma products
    • Liquid Chemicals
    • Liquid Food products
    • Lubricants

Yes! I am interested

Submit Your Requirement


Technical Details

Technical Details

Capacity

In

L.P.M



A



B







C





Motor H.P

3 H.P 1440

R.P.M



Drum R.P.M



Magnetic Drum Size



30



350



150



150



0.25



2.3



D 150 X 300 L



50



350



150



205



0.25





2.3



D 150 X 185 L



65



400



150



280



0.25



2.3



D 150 X 260 L



100



400



150



380



0.25



2.3



D 150 X 360 L



150



500



200



580



0.50



2.3



D 150 X 560 L



200



500



200



620



0.50



2.3



D 150 X 700 L



300



550



200



720



0.50



2.3



D 200 X 600 L



400



550



200



720



0.50



2.3



D 200 X 700 L



500



550



200



820



0.50



2.3



D 200 X 800 L
