Shubh Laxmi Machine Tools

compact paper band filter cum magnetic separator

compact paper band filter cum magnetic separator
Price : INR 45,000.00 / Piece
Buy Now

MOQ : 1 Piece(s)

Type Compact Band Filter
Certification CE Certified, ISO 9001:2008
Application Grinding Lapping, Gun Drilling, Wire Drawing
Weight 100-200kg, 200-300kg, 300-400kg, 400-500kg, 500-600kg, 600-700kg, 700-800kg
Click to view more

Preferred Buyer From

Location Anywhere in India

Product Details

Color
Blue, Grey
Voltage
110V, 220V
Condition
New
Automatic Grade
Fully Automatic
Driven Type
Electric
Warranty
1year
Brand Name
Shubh Laxmi
After-Sales Service Provided
2 Years
Name
compact paper band filter
usage
Coolant Filter system
Product Code
CBF-100
Port
nahavasiva
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Other
Delivery Time
25 days
Packaging Details
Export Type







capacity  can handle 30 lpm to 2000 lpm flow capacity

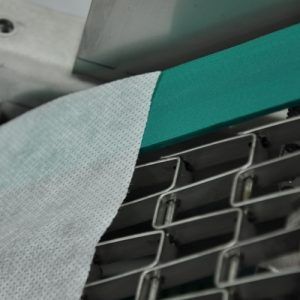

in modern technology, filtration and maintenance of coolant is a prerequisite for achieving desired quality standard. Shubh laxmi has wide range of compact band filters which cater to varying filtration capacity needs. It is possible to reduce the area of filter by 80% as against conventional flat paper band filter, with a high degree of filtration efficiency. By using different grades of filter papers, the desired filtration effects can be achieved. The optimum sealing between honeycomb mesh, drum assembly and filter paper completely eliminates any fear of contamination. Shubh laxmi compact band filter control system ensures fully automatic filtration operation and thereby reduces manual attention.





key features:


• compact design occupies lesser space without compromising the efficiency

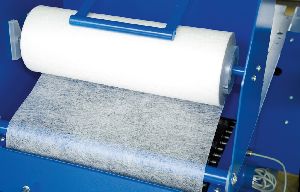

• lesser consumption of the filter paper


• removes ferrous and non-ferrous impurities


• diffuser box to reduce velocity of the coolant





• fully automatic operation - float switch sensor to remove clogged filter paper. Float switch sends a signal to control panel to activate the electric drive.


• lever type limit switch is adjusted on paper filter role and gets activated when paper role gets consumed. Limit switch sends a signal to control panel to flash a warning when activated.


• designed as per requirement in ms or ss body and available for standalone machine as well as for transfer lines





• uses gravity or supply pump depending on application


 easy maintenance


hassle free installation


• can handle 30 lpm to 2000 lpm flow capacity






Price : INR 45000 - 545000 -per- Piece(s)
